THE LIGHTEST ONEWHEEL ON THE MARKET

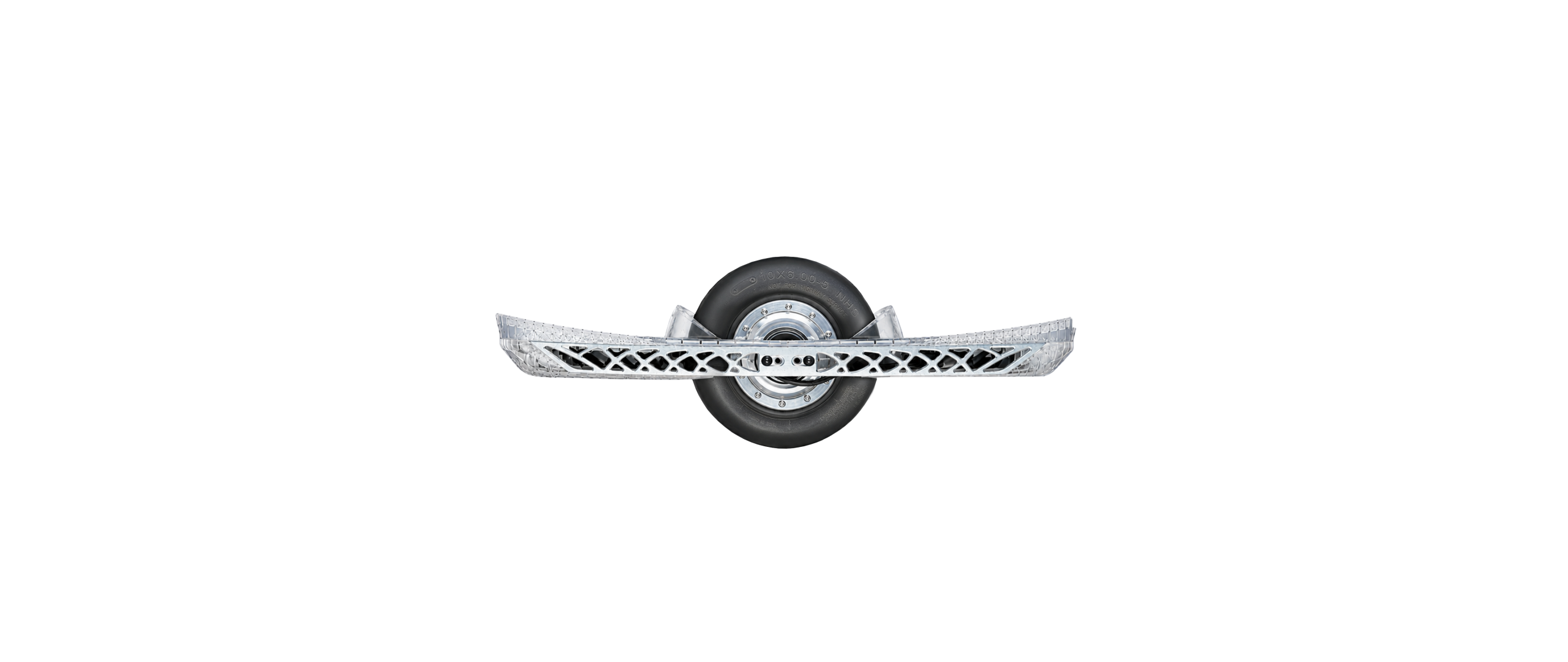

Meet the Floatwheel ATOM — GTS performance in a board that weighs only around 10 kg (22 lb).

Light enough to carry. Powerful enough to make you forget it's light.

KEY SPECS

• Weight: ~10 kg / 22 lb

• Battery: 22S1P RS50

• Motor Power: Up to 4200W

• Tire: 10×6-5

• Hub: 5 inch

• Controller: VESC-based, derived from the flagship ADV

• Charger: UL-certified 92.4V / 1.7A

• Production version shipping now

FULL-SIZE POWER. HALF THE BULK.

Atom was designed around one simple goal: make a genuinely lightweight board without making it feel like a lightweight board.

At around 10 kg (22 lb), Atom is the lightest one-wheel on the market, yet its torque is comparable to much larger high-performance boards like GTS.

The controller is derived from our flagship ADV and is capable of driving motors far beyond what Atom actually needs. In other words, the electronics are intentionally overbuilt for a board this small.

22S PERFORMANCE

Atom uses a 22S1P RS50 battery, giving it the voltage and current capability needed for serious performance while keeping the overall package compact. For reference：Pint S uses 15S2P VTC6 with older battery cells that only offers 63V 60A peak with noticeable sag, while Atom uses latest tabless RS50 cells that offers 92V 100A peak with virtually no sag. even compared to the GTS which uses 27S1P P45B which offers 113V 60A peak, the Atom's battery pack still offers more peak power output, but with 5 less cells, it only has 90% GTS range.

The BMS provides cell balancing, charge protection and diagnostic capability, and it's a charge only BMS which means it's very robust and safe.

5-INCH HUB + FULL-SIZE TIRE

Production Atom comes with our 10×6-5 slick tire on a 5-inch hub.

Compared with the smaller tire used on early Beta boards, the production tire provides way better range, stability and ride feel while still keeping Atom extremely compact.

PINT ACCESSORY COMPATIBILITY

Atom was designed around the Pint form factor, making it compatible with a huge ecosystem of existing Pint accessories.

Fenders, rail accessories and many popular aftermarket upgrades can be used.

TIRE COMPATIBILITY

Standard Rails:

• TFL Enduro 555

• TFL Street Pro II 5"

• Hoosier 45/100-5 rain and slick

• Burris 11×5-5

Extended Rails:

Our extended rails are 30 mm longer than the standard rails, providing additional clearance for larger 5-inch tires.

Compatible tire dimensions:

• Outer diameter: ≤12"

• Width: ≤6.5"

• Rim: 5"

Note: Extended rails are not compatible with the Drop Top Fender.

CHARGING

Atom includes a UL-certified 160W charger rated at 92.4V / 1.7A.

Despite being the standard charger, its charging power is comparable to the Pint Ultracharger（189w） and approximately twice the power of the standard Pint S charger（81.9w）.

BUILT TO BE REPAIRABLE

Like our other Floatwheel products, Atom is designed with repairability in mind.

Replacement electronics, battery components and other service parts are available, and we provide troubleshooting and repair guidance whenever possible.

Atom uses the open VESC ecosystem, giving experienced riders access to a level of configuration and diagnostics that closed systems simply don't provide.

WARRANTY

Atom electronics and motor are covered by a one-year warranty while every other manufacture covered only 6 months.

If a hardware defect is identified, we'll work with you to diagnose the problem and provide the appropriate replacement parts with no questions asked, no need to send it in, you can replace parts just like on your skateboard, the modular design makes it super easy to work with.
